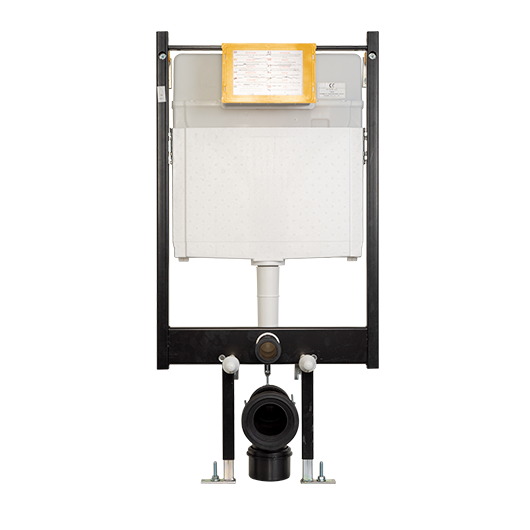

T-Series T02-2116-0240 1.10m SLIM WC Frame

T-Series T02 concealed cisterns and frames represent the perfect combination of quality, aesthetics and functionality. Only 85mm in thickness, the T02 super slim cisterns comfortably fit in tight voids, while their 6/3l dual flush saves water.

Product Features
Technical Information
  • Slim depth - installs into 105mm void
  • Pre-installed WC cistern with support frame
  • Silent operation - Only The Best Inside Fluidmaster 747 fill valve
  • Range of flushing plates designed for any environment; contemporary; versatile and functional
  • Dual flush 6/3
  • 200mm adjustable height
  • 1/2" water connection
  • WRAS approved
  • System fully insulated with polystyrene for long-lasting performance
  • Support 400kg static load
  • Supports either 180mm or 230mm pan bolt centres
  • Order Number

    T02-2116-0240

  • Warranties and certifications
    10 year warranty, 400 KG, CE, WRAS
  • Application
    Wall-hung WC pan
  • Material
    Steel
  • Self-bearing construction
    Yes
  • Surface protection
    Coated
  • Adjustable height
    YES
  • Adjustable width
    NO
  • Adjustable depth
    YES
  • Adjustable toilet height
    NO
  • Height
    1100 - 1300 mm
  • Width
    560 mm
  • Depth
    90 - 150 mm
  • Cistern Model
    T02
  • Cistern Material
    Plastic
  • Mains Water Connection
    External thread
  • Size of mains water threaded connection (inch)
    1/2"
  • Minimum flushing water quantity
    2.5 Litres
  • Maximum flushing water quantity
    9 Litres
  • Adjustable water volumes
    YES
  • Mechanical activation plate compatible
    YES
  • Pneumatic activation plate compatible
    NO
  • Touchless/IR activation plate compatible
    NO
  • Front activation
    YES
  • Top activation
    NO
  • With shut-off valve
    YES
  • Supplied with pan connector
    YES
  • Supplied with toilet attachment materials
    YES
  • WRAS / KIWA certified
    WRAS
